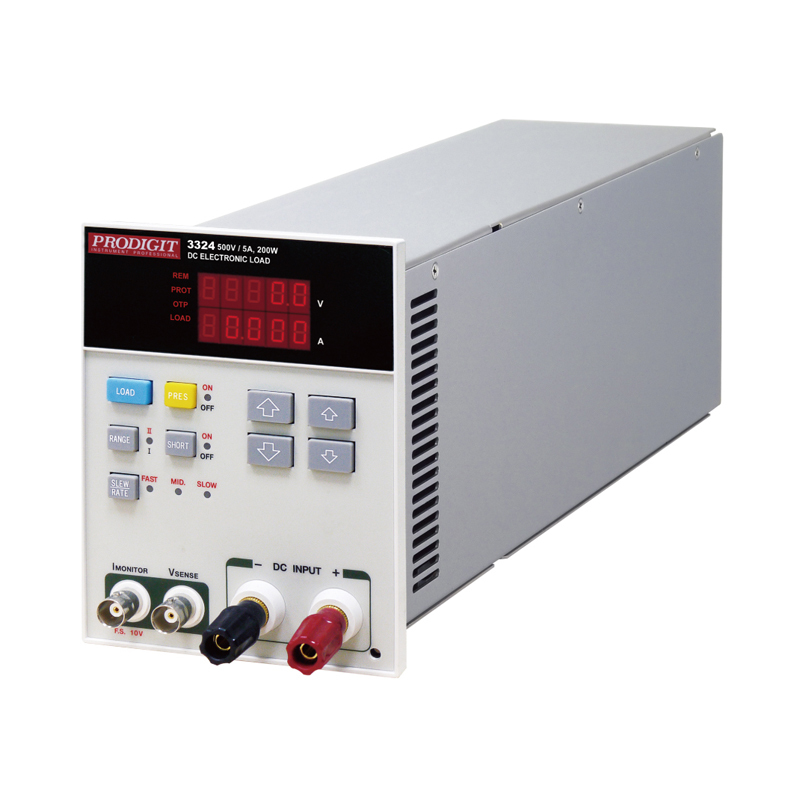

3324 DC Electronic Load 500V, 5A, 200W



Description



l   3320 series module are used with the 3301A 4ch Mainframes and 3302A single channel Mainframe.

l   Each 3320 series module has its own control and display panel with constant current operating mode.

l   5 states Store/Recall memory on 3302 and 3301A mainframe which provides load set-up more efficiently.



Features



l   Must be configured in

l   3301A¡efour channels mainframe¡f

l   3302A¡esingle channel mainframe¡f

l   CC Static, Short Mode

l   Dual 4 1/2 V/A Meter on each module

l   Current Slew Rate control capability

l   5 Memory Store / Recall on each Module

l   Protections against V, W, and ¢J

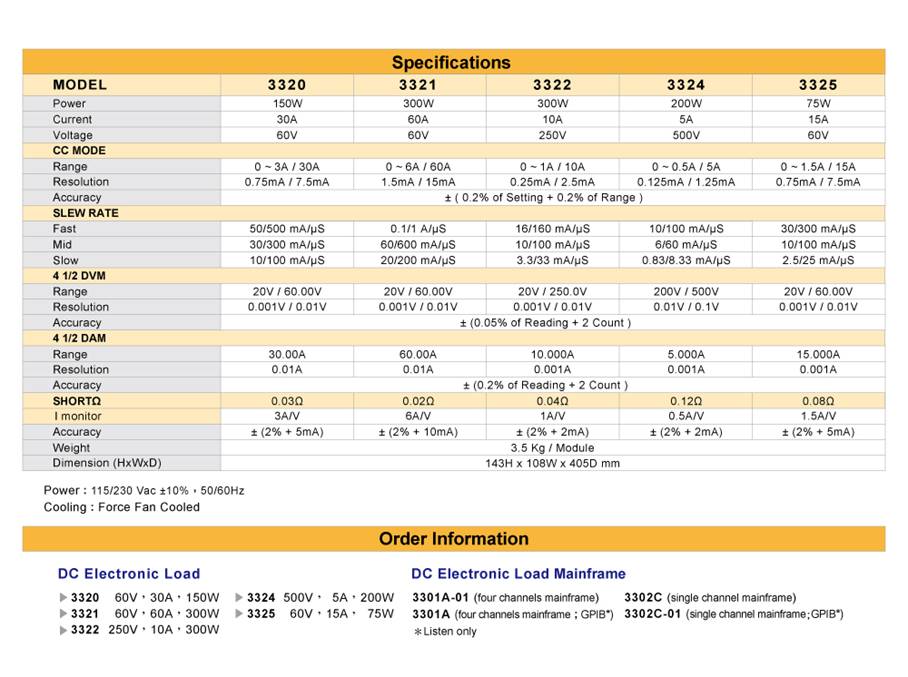

Specifications
